APS838 Beam Saw
Advanced technology imported from Germany
APS838 Beam Saw
Saving you time is our motivation
Time, the most important resource in a modern workshop was one of the main focuses whilst developing the new tempora machine concept. Processing edges needs to be as quick, easy and efficient as possible. To achieve this, the tempora model combines the key characteristics of speed, productivity, flexibility and user comfort in a convincing complete package. The final finishing results when processing both coiled and strip material convince with incredibly high standards, that fulfil the ever increasing demands of edgebanding complete processing.
unisunx
Unisunx group company owns 70000 square meters of production scale.
Besides,it has abundant technique strength, full range of testing method and four professional production lines of woodworking machinery.So it can manufacture thousands sets in one month. Our factories locate at Jiaozhou Bay.
The most important highlights at a glance
side leaning mechanism

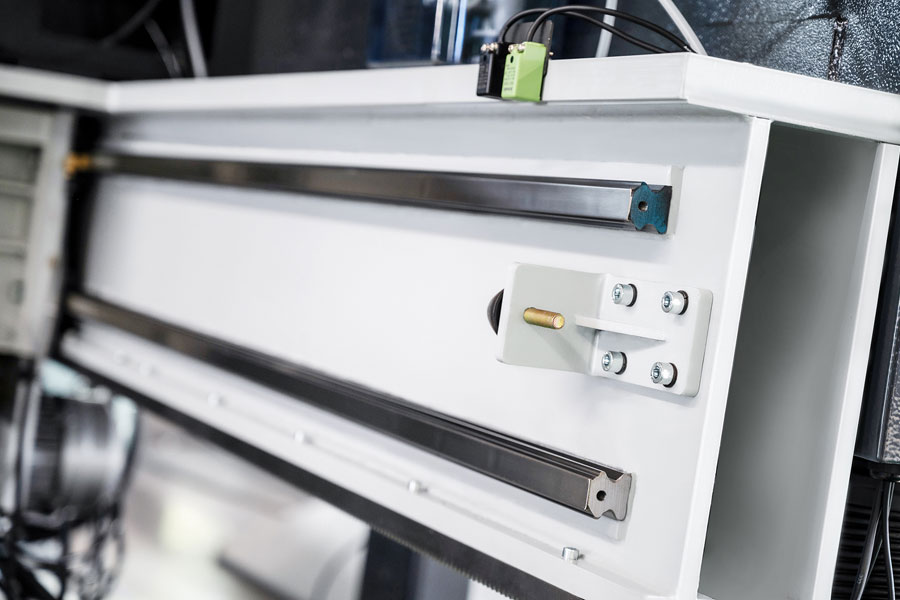

Side leaning mechanism

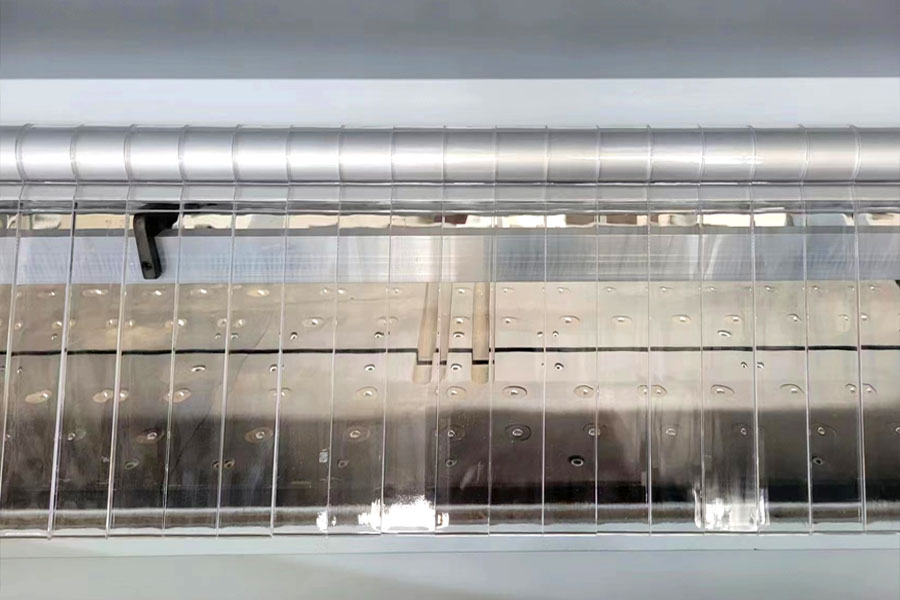

Suspension grippers,avoiding scratch board surface
Suspension grippers,avoiding scratch board surface
Quick loading and unloading system
Quick loading and unloading system

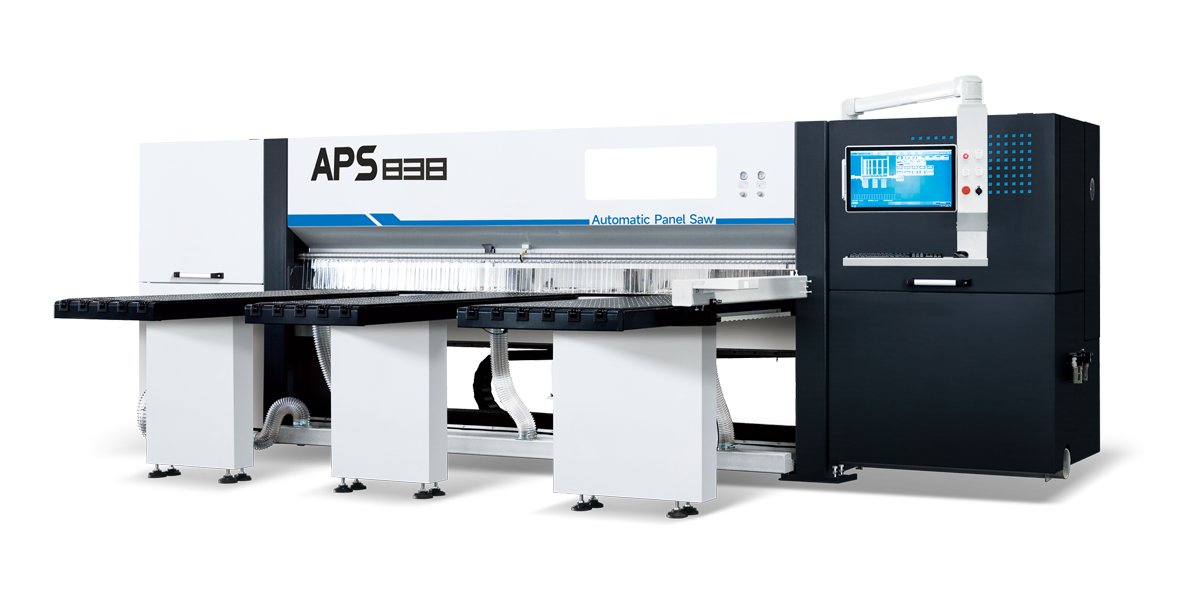

APS838 Beam Saw
- Advanced technology imported from Germany.
- High speed heavy duty construction.
Details

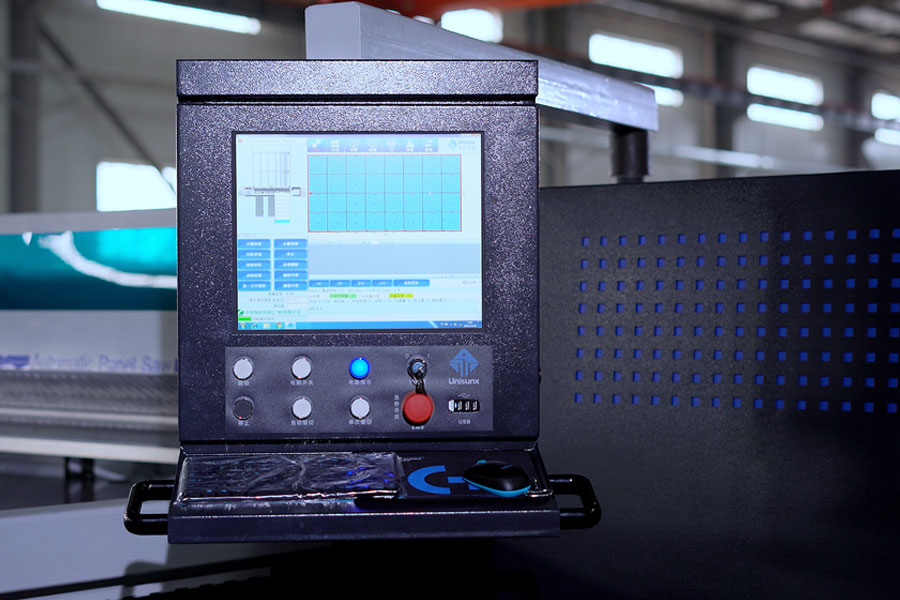

17-inch touchable computer screen, write programs for optimization. After the optimization is completed, start the large saw blade and the small saw blade, place the plate and press the start button to perform longitudinal sawing.
Technology Data
Model name | APS838 |
Max. Cutting size (L*W*T) | 3200×3700×90/120mm |
Max. Cutting Speed | 105m/min |
Max. Feeding speed | 85m/min |
Dia. Of Main Saw | ∮400mm/MAX∮450mm |
Dia. Of scoring saw | ∮200mm |
Main saw motor power | 15KW/18.5KW(optional) |
Scoring saw motor power | 2.2KW |
Feeding servo motor power | 2KW |
Saw carriage servo motor | 2KW |
Working air pressure | 5-7bar |
Main motor speed | 4500rpm |
Min. Speed of dust collection | 28m³/s |
Input air capacity for dust collection | 55m³/s |
Net weight | 5440kgs |
