APS628L Beam Saw

Advanced technology imported from Germany

jiantou

Saving you time is our motivation

Our products include: Panel saw (including Z and Y series), edge banding machine, reciprocating saw series, over-edging machine, CNC processing center, beam saw, carving machine series and so forth, which are exported to more than 50 countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia. It has established complete sales system (more than 120 dealers). Over yeas of experience in competitions in domestic and overseas markets, our brand has become one of global well-know brand, which offers trustworthy machinery for global customers.

unisunx

Unisunx group company owns 70000 square meters of production scale.
Besides,it has abundant technique strength, full range of testing method and four professional production lines of woodworking machinery.So it can manufacture thousands sets in one month. Our factories locate at Jiaozhou Bay.

The most important highlights at a glance

xj1

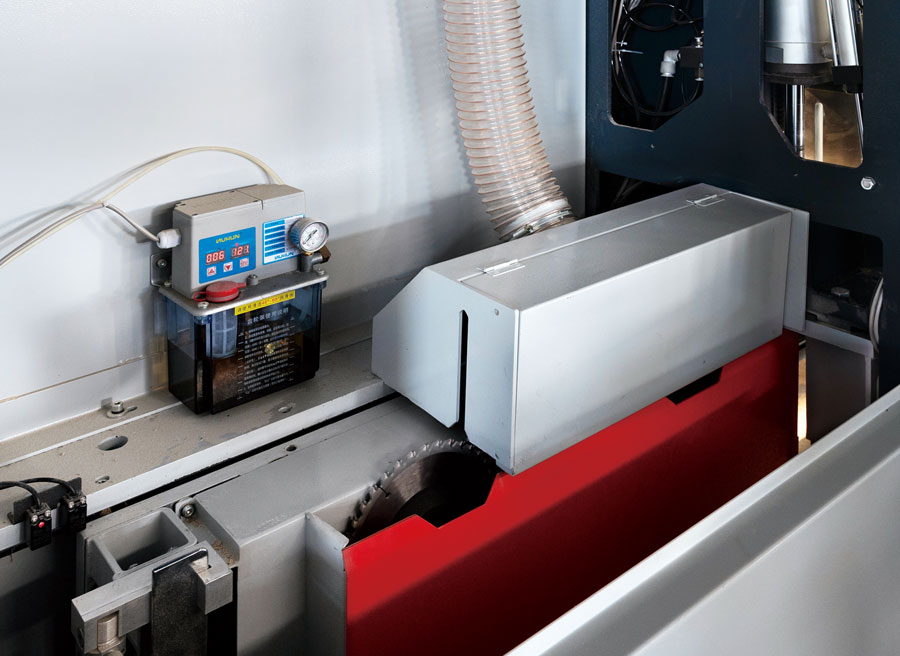

Side leaning mechanism

xj2

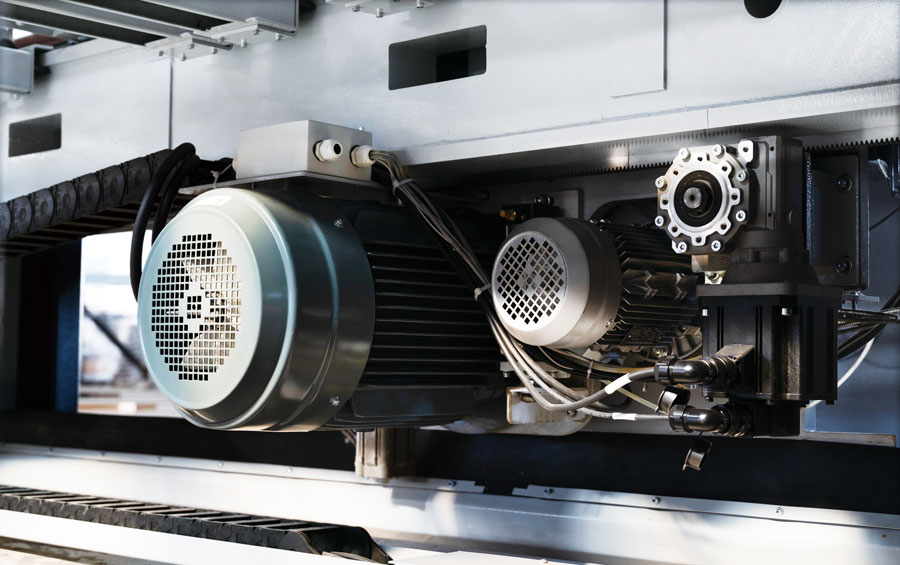

Saw unit driving

268

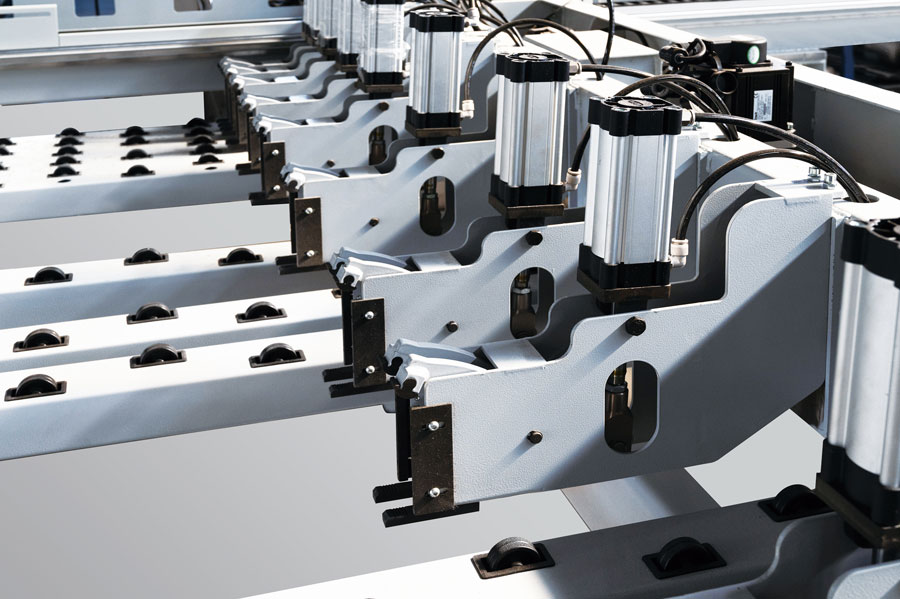

Suspension grippers,avoiding scratch board surface

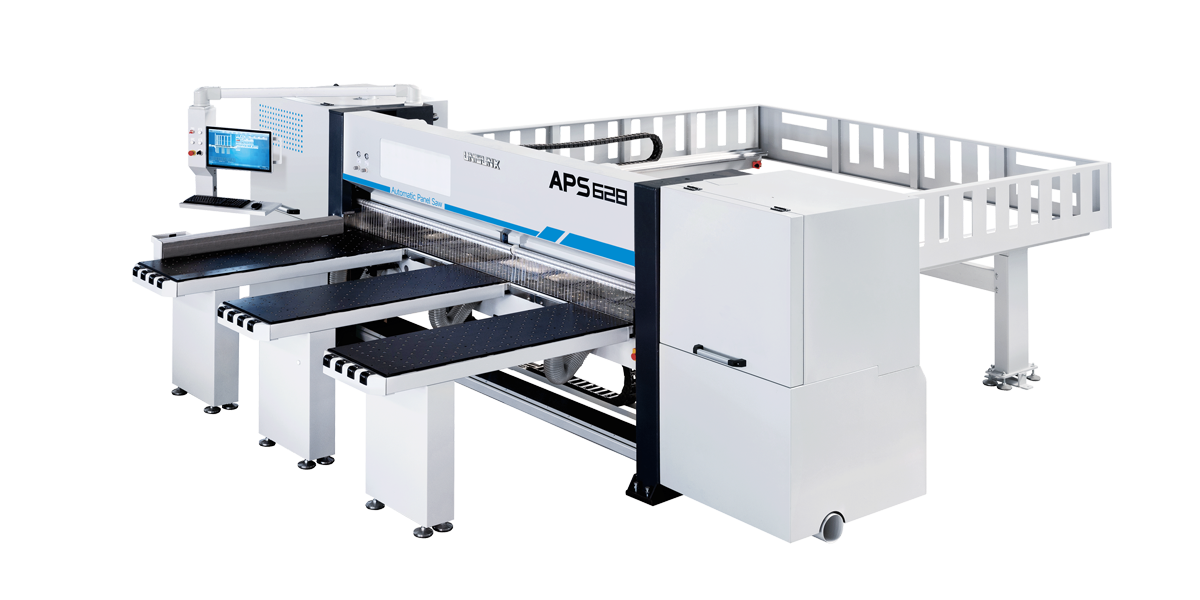

APS628L Beam Saw

  • Advanced technology imported from Germany.
  • High speed heavy duty

Technology Data

Model nameAPS628
Max. cutting size (L*W*T)2800*2600×100MM
Max. cutting Speed80m/min
Max. feeding speed85m/min
Dia. of main saw∮380mm (optional400mm)
Dia. of scoring saw∮200mm
Main saw motor powerstandard 15kw(18.5kw optional)
Scoring saw motor power3kw
Feeding servo motor power2.0kw
Saw carriage servo motor2.0kw
Working air pressure5-7bar
Main motor speed4500rpm
Min. speed of dust collection28m^3/s
Input air capacity for dust collection55m^3/s
Overall size6000×5400×1960mm
