MFZ350AS Pro EDGE BANDING MACHINE

MFZ350AS Pro EDGE BANDING MACHINE
The appearance may be updated at any time. There may be a delay in website updates. The latest design is the final version.

Saving you time is our motivation
Our products include panel saw, boring machine, edge banding machine, automatic panel saw, CNC processing center, carving machine series and so forth, which are exported to more than 60 countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia. lt has established complete sales system(more than 150 dealers). Over 20 years of experience in competitions in domestic and overseas markets, our brand Unisunx has become one of global well-know brand, which offers trustworthy machinery for global customers.
unisunx
Unisunx group company owns 70000 square meters of production scale.
Besides,it has abundant technique strength, full range of testing method and four professional production lines of woodworking machinery.So it can manufacture thousands sets in one month. Our factories locate at Jiaozhou Bay.
The most important highlights at a glance

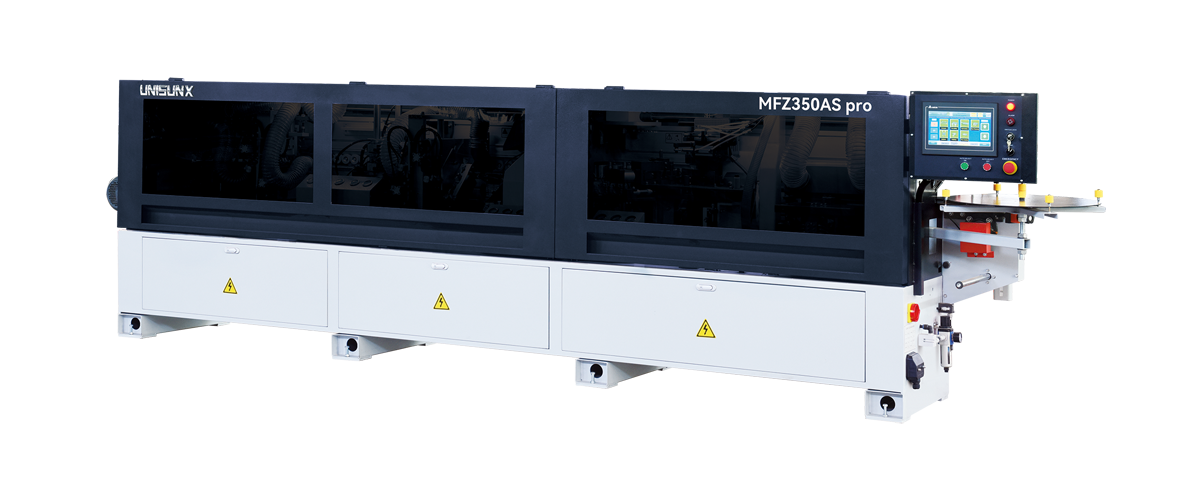

MFZ350AS Pro EDGE BANDING MACHINE

Details

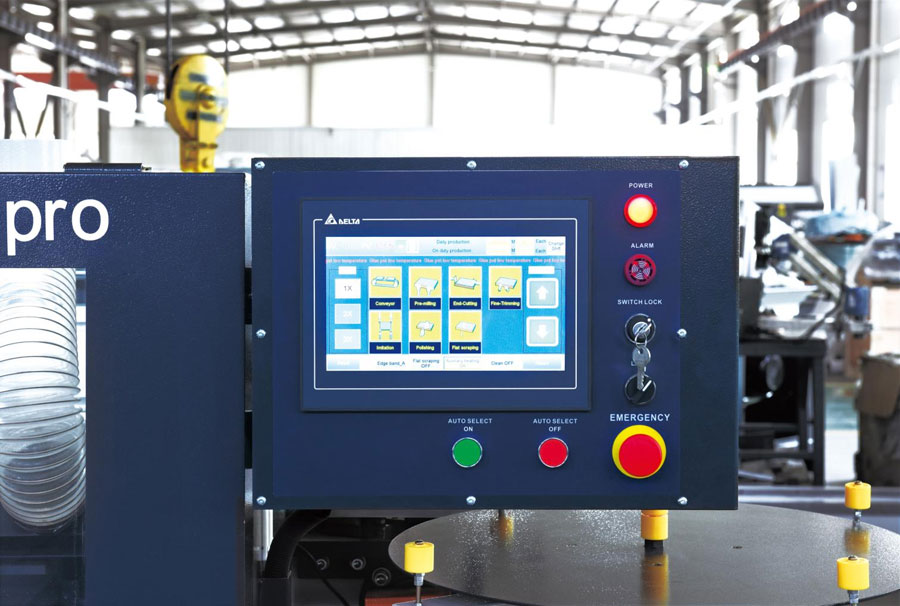

1. Start and stop equipment
2. Function selection
3. Parameter setting
4. Warning notice

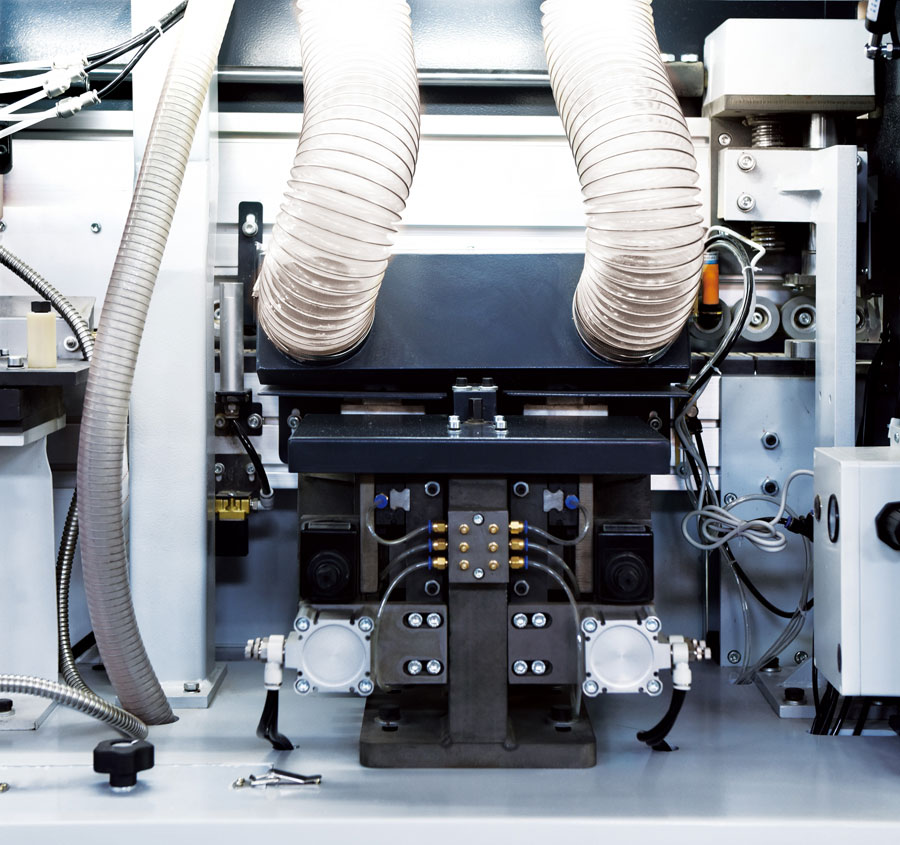

Pre-milling equipment with double pre-milling knives(diamond pre-milling knives for optional) works on the waved effect that is caused by panel saw.

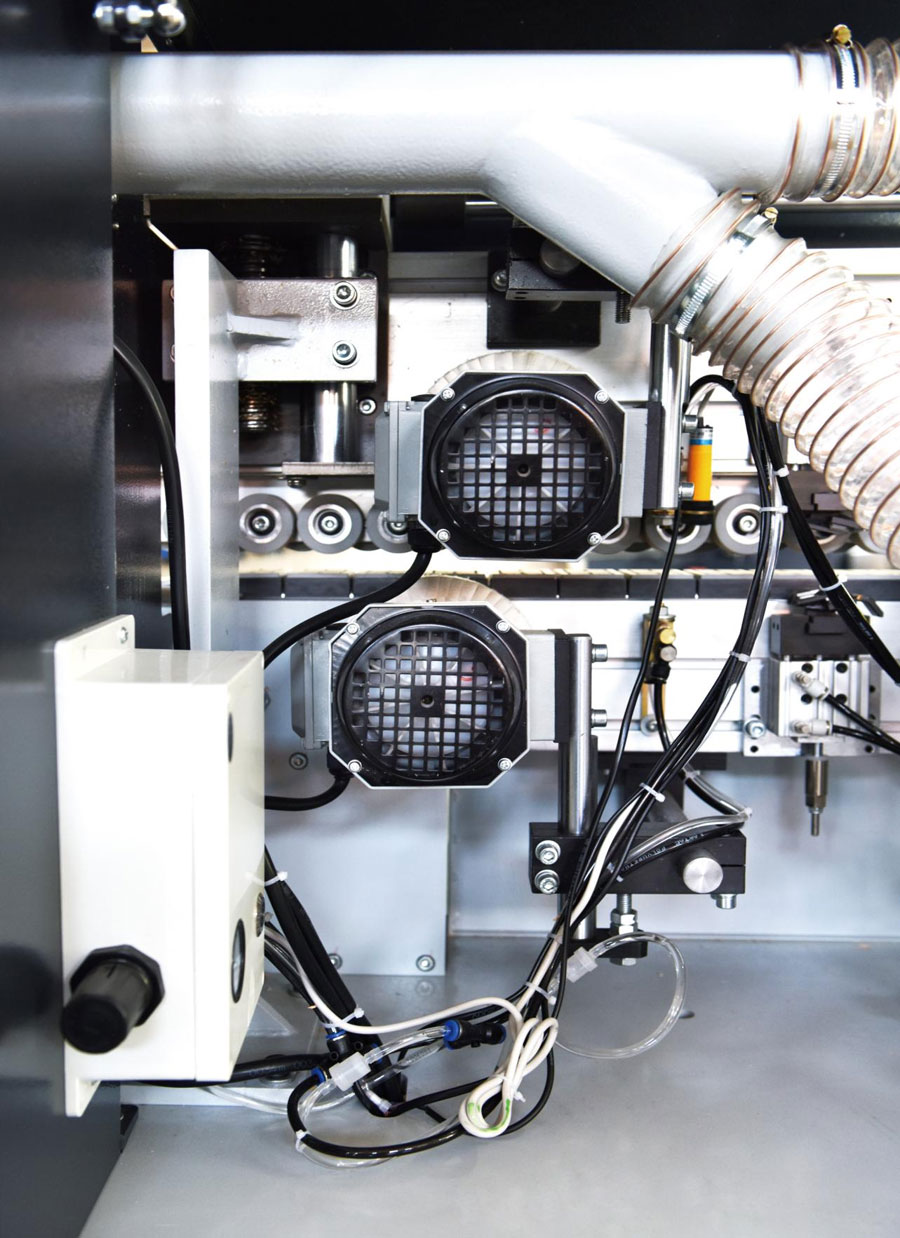

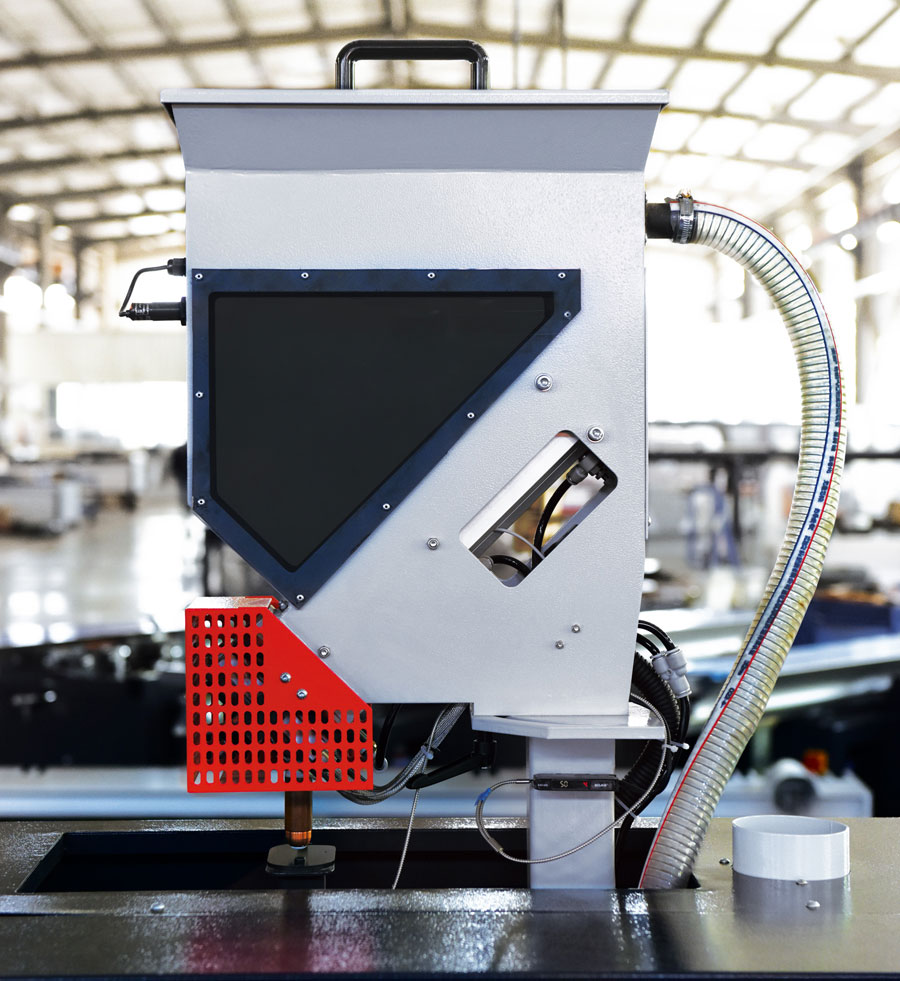

Using the precise linear guide rail movement and high-frequency high-speed motor to cut off the edge banding quickly that ensure the edge banding surface of the plate is smoothly
Technology Data
Model | MFZ350AS PRO |

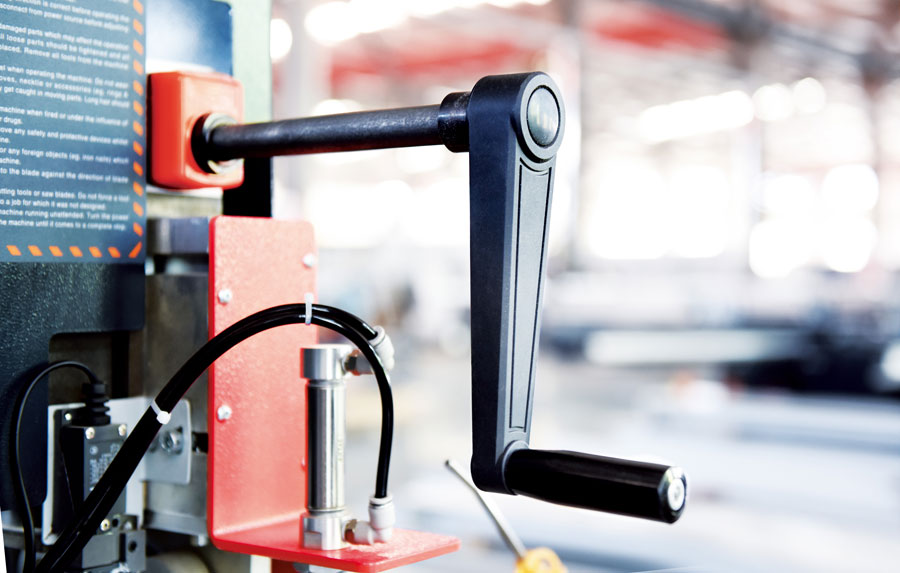

Up/down for beam | Motorize up/down |
Motor Power | 14.43kw |
Overall size(L*W*H) | 4500×685×1245mm |
Feed Speed | 14.5m/min (50HZ) 18.5m/min (60HZ) |
Panel Width | ≥60mm |
Panel Thickness | 10~60mm |
Edge Tape Width | 12~63mm |
Edge Tape Thickness | 0.4-3mm |
Working air pressure | 0.7Mpa |
Net weight | 1400KGS |
