MFZ450A2S

Automatic Edge Banding Machine

Edge Banding Machine
jiantou

Saving you time is our motivation

Our products include panel saw, boring machine, edge bander, automatic panel saw, CNC processing center, carving machine series and so forth, which are exported to more than 60 countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia. lt has established complete sales system(more than 150 dealers). Over 20 years of experience in competitions in domestic and overseas markets, our brand Unisunx has become one of global well-know brand, which offers trustworthy machinery for global customers.

unisunx

Unisunx group company owns 70000 square meters of production scale.
Besides,it has abundant technique strength, full range of testing method and four professional production lines of woodworking machinery.So it can manufacture thousands sets in one month. Our factories locate at Jiaozhou Bay.

The most important highlights at a glance

113
3

Feed guide

4

Premilling system

MFZ450A2S Automatic Edge Banding Machine

Edge Banding Machine

Details

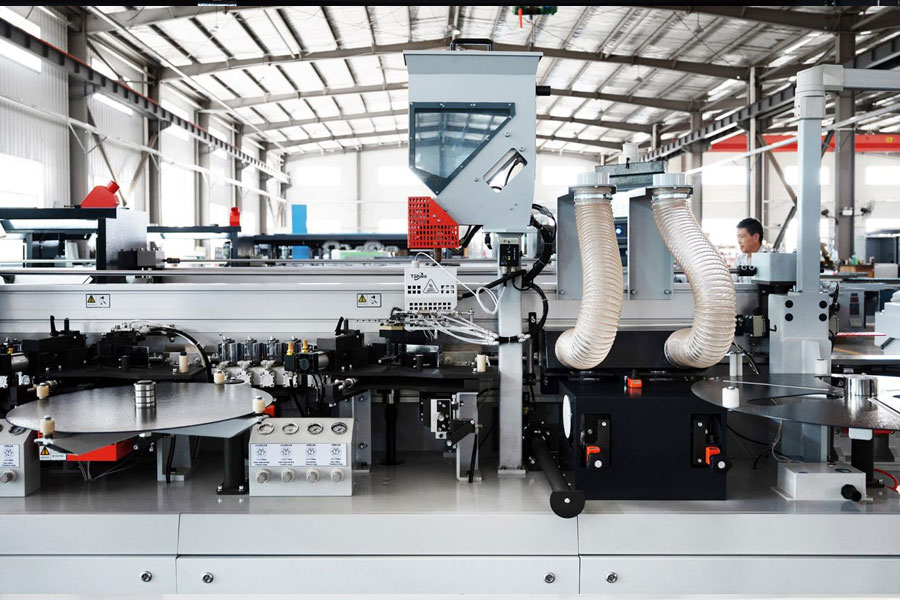

No.1 rubber pot for two-color no-cleaning PUR rubber pot, standard with 5 press wheel pressing device, easy to achieve a variety of colors PUR edge switching. The second glue pot is standard with the glue pot, or optionally, the glue pot is equipped with a quick pre-melting device, five rounds of pressure paste, and the standard scraping film.

Gluing unit

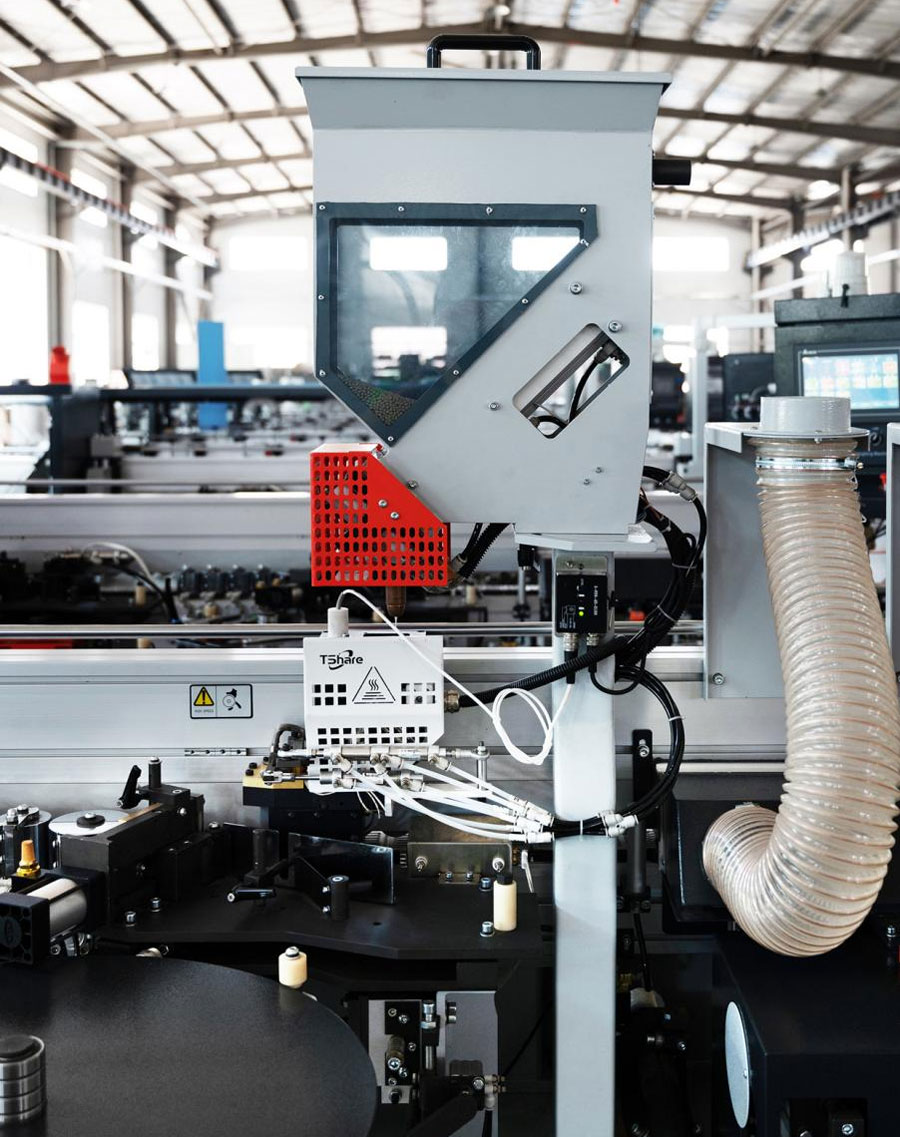

When there is a lack of rubber granules in the rubber box, the rubber granules can be automatically sucked into the rubber box. Reduce manual operation to avoid unnecessary waste and high temperature risk caused by manual operation.

Precision linear guide structure, can cut the end of the minimum 4cm plate. Two 0.37kw motors, frequency 200hz, speed: 12000rpm. Equipped with motor manual rotation device for Angle adjustment for cutting out excess front and rear end film. Automatic tracking by mold and high frequency electrode fast cutting mechanism to ensure smooth cutting surface.

According to the thickness of the edge tape automatic switch, used to repair processing plate edge sealing strip up and down the excess part of the edge sealing material, to ensure that the upper and lower parts of the trimming plate smooth.

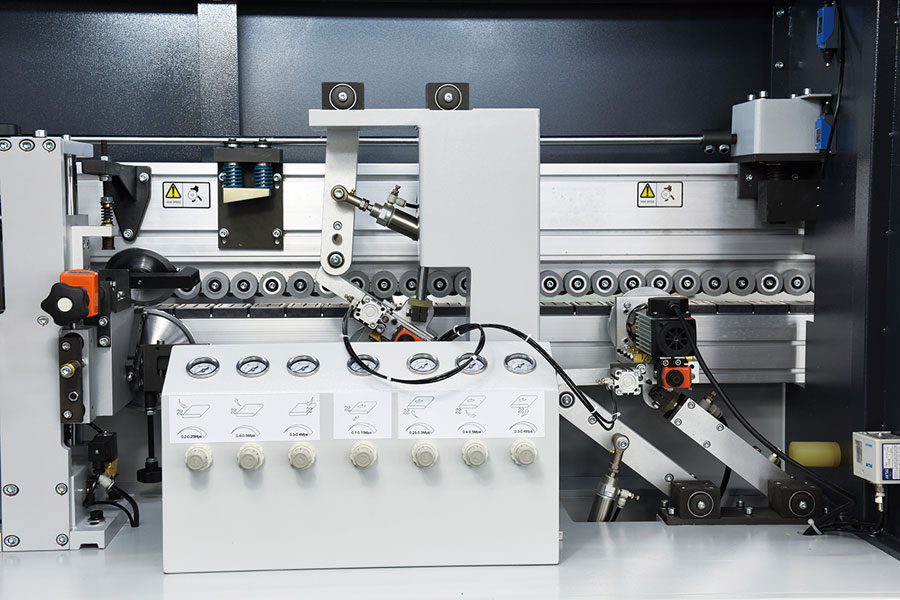

UNISUNX patented technology, high precision copying to ensure the finished product effect; Can repair both sides of the fillet, double motors to repair the Angle copying, each motor power 0.3kw, frequency 200hz, speed 12000rpm; Planar connecting rod mechanism, two copy milling cutter, make the end face of the plate more smooth and beautiful; Can also track the repair edge, according to the needs of the repair of different shapes of the edge.

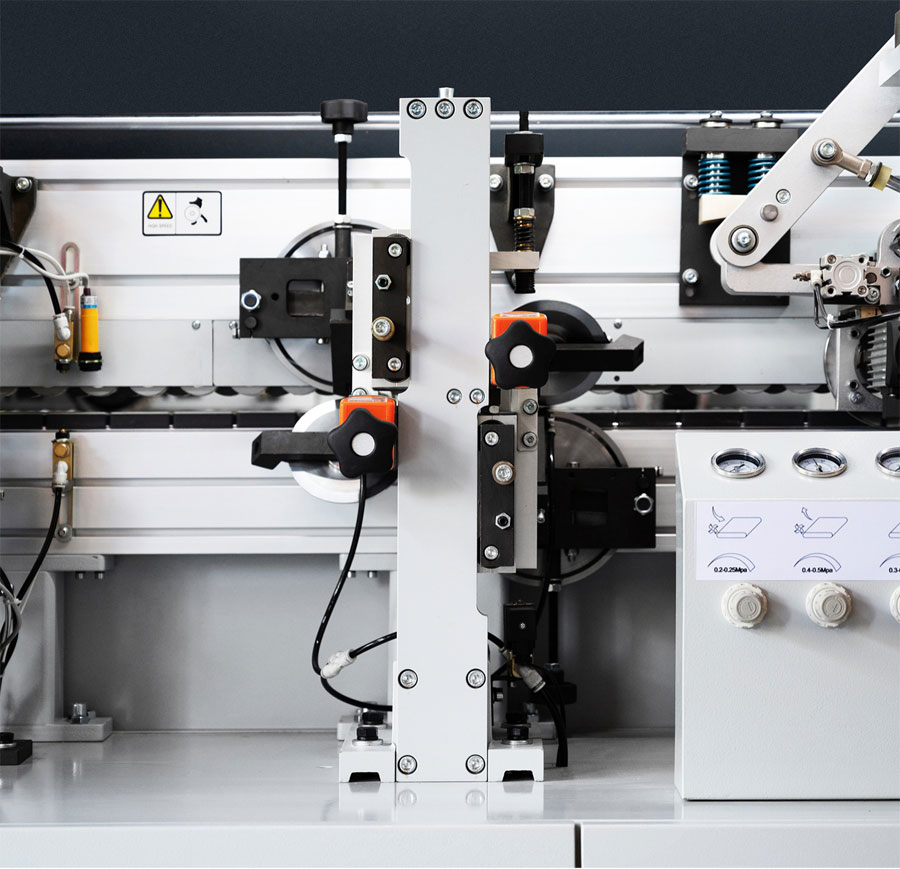

Remove the pre-cut PVC film on the milling marks, eliminate the edge of the non-linear motion of the cutting process caused by the ripple marks.

Automatic wire breaking after scraping, avoid filamentous PVC winding, affect the edge sealing effect, improve the cleaning of the sheet after edge sealing, pneumatic control.

Remove separation agent and residual glue to ensure clean surface.

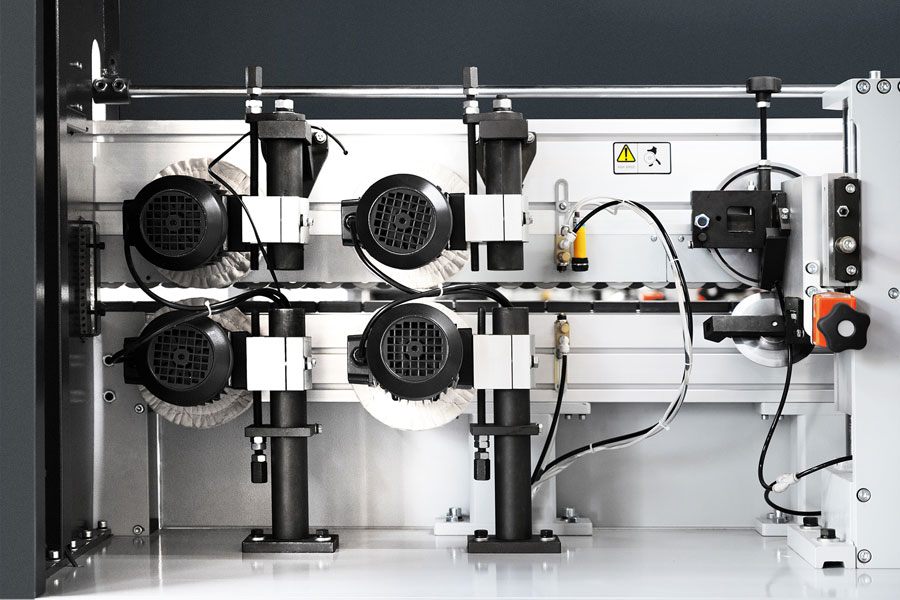

Electric drive polishing swing, the effect is more stable and efficient. Two groups of polishing effect is better, can be competent for different colors of polishing work.

Input voltage 3~380v, 50hz. With motor braking function of independent inverter control, phase sequence protection device. All equipment and electrical appliances meet the relevant national standards, standard with Delta converter, standard with a line of international brand low-voltage electrical appliances.

Technology Data

Total power17.3kw
Overall dimensions8265 x 1100 x 1600mm
Feed speed8-25m/min
The thickness of the sheet meta10-60mm
Sealing tape thickness0.4-3mm
Sheet metal width≥50mm
Work pressure6MPa
Weight2700kg
