MFZ450BE

Automatic Edge Banding Machine

jiantou

Saving you time is our motivation

Our products include panel saw, boring machine, edge banding machine, automatic panel saw, CNC processing center, carving machine series and so forth, which are exported to more than 60 countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia. lt has established complete sales system(more than 150 dealers). Over 20 years of experience in competitions in domestic and overseas markets, our brand Unisunx has become one of global well-know brand, which offers trustworthy machinery for global customers.

unisunx

Unisunx group company owns 70000 square meters of production scale.
Besides,it has abundant technique strength, full range of testing method and four professional production lines of woodworking machinery.So it can manufacture thousands sets in one month. Our factories locate at Jiaozhou Bay.

The most important highlights at a glance

3

Feed guide

112
113

MFZ450BE Automatic Edge Banding Machine

Details

Precision linear guide structure, can cut the end of the minimum 6cm plate. Two 0.37kw motors, frequency 200hz, speed: 12000rpm. Equipped with motor manual rotation device for Angle adjustment for cutting out excess front and rear end film. Automatic tracking by mold and high frequency electrode fast cutting mechanism to ensure smooth cutting surface.

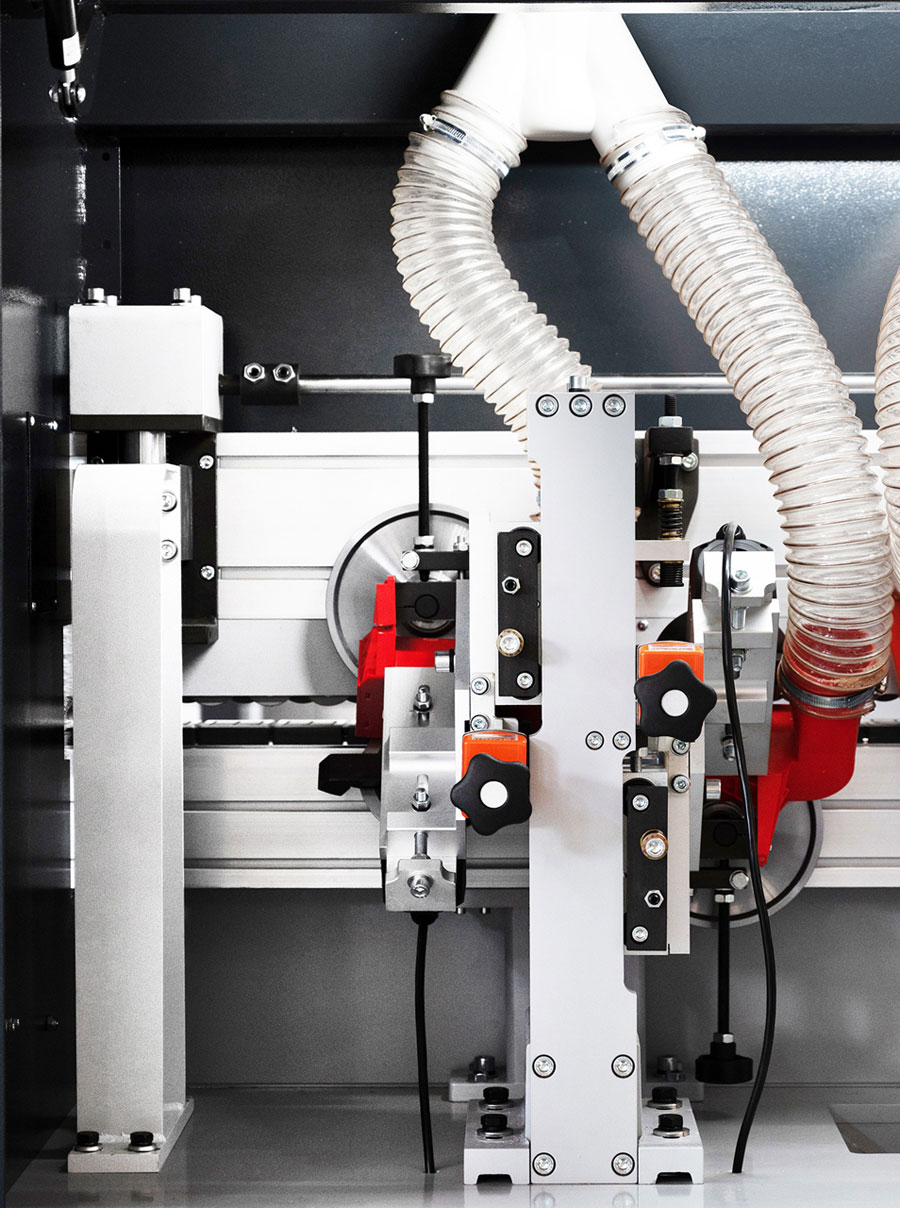

Fine trimming mechanism used for repairing the excess edge materials, adopt automatic tracking and high-frequency motor fast cutting structure to ensure the trimming plates smoothly.

The scraping mechanism used for removing the tool marks left by trimming and cutting process, to ensure the trimming plates smoothly.

Technology Data

Total power 8.95kw
Overall dimensions 4320 x 1100 x 1600mm
Feed speed 8-25m/min
The thickness of the sheet meta 10-60mm
Sealing tape thickness 0.4-3mm
Sheet metal width ≥50mm
Work pressure 6MPa
Weight 1700kg
