MFZ450C

Automatic Edge Banding Machine

Edge Banding Machine
jiantou

UNISUNX You Can Rely on

Our products include: Panel saw (including Z and Y series), edge banding machine, reciprocating saw series, over-edging machine, CNC processing center, carving machine series and so forth, which are exported to more than 50 countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia. It has established complete sales system (more than 120 dealers). Over yeas of experience in competitions in domestic and overseas markets, our brand has become one of global well-know brand, which offers trustworthy machinery for global customers.

Details That Make the Difference

265

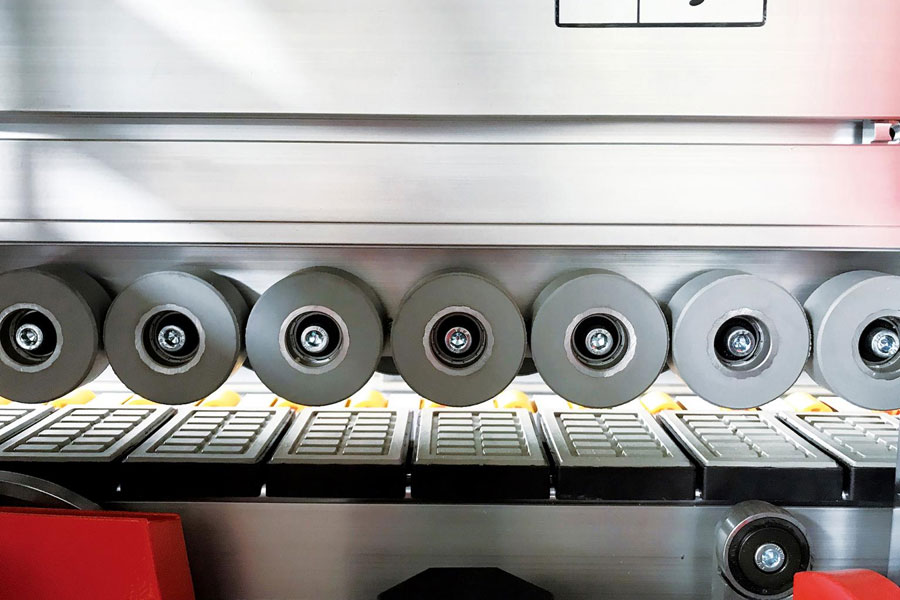

Feed guide

112
113

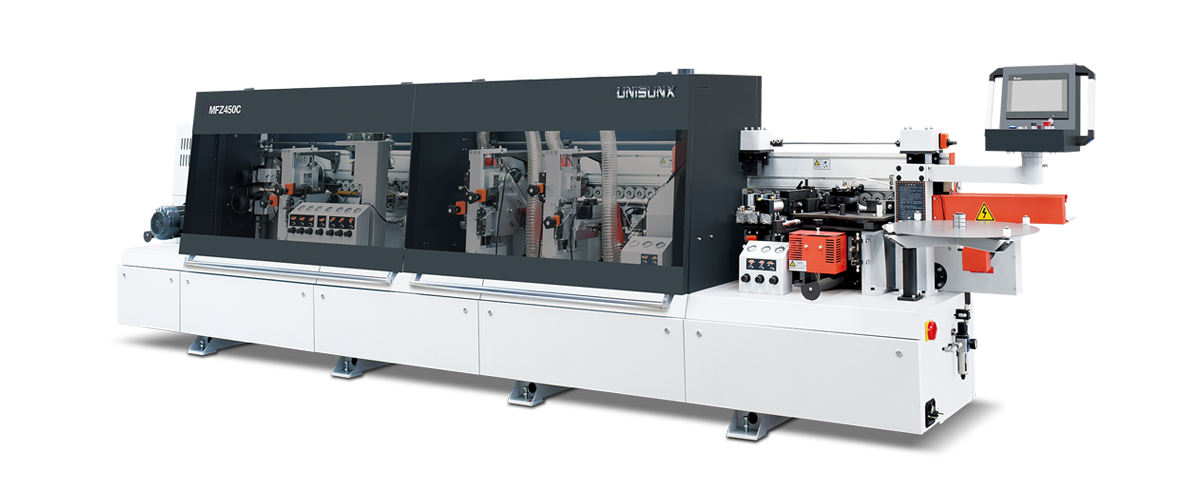

MFZ450C Automatic Edge Banding Machine

Edge Banding Machine

Details

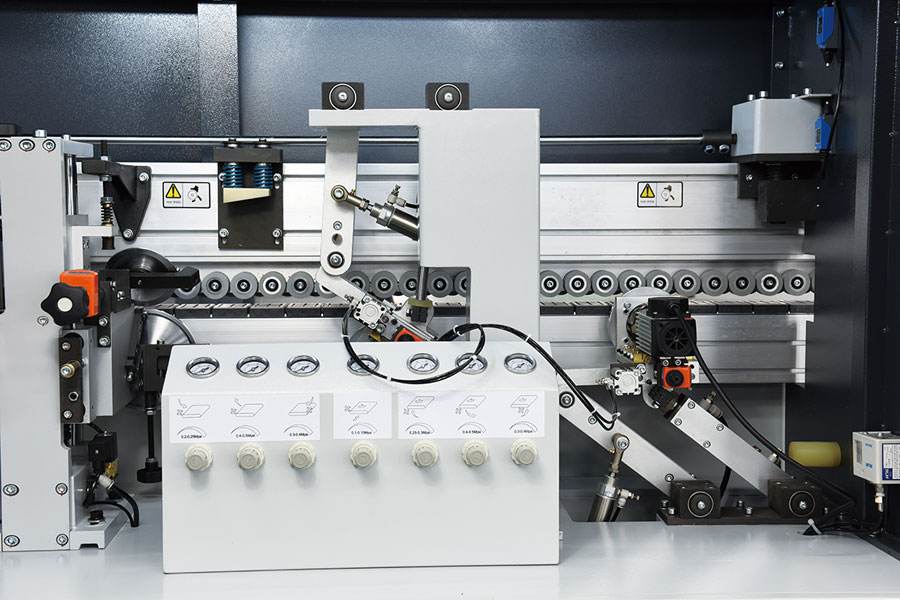

Front and back end trimming unit: Use the structure of automatic tracking and fast cutting of high-frequency high-speed motor to ensure the smooth cutting surface.

Rough / Fine trimming mechanism used for repairing the excess edge materials, adopt automatic tracking and high-frequency motor fast cutting structure to ensure the trimming plates smoothly.

Profiling unit: UNISUNX patented technology, high-precision profiling to ensure the finished product effect. Track the trimming, according to the demand can be trimmed out different shapes of the edge.

Technology Data

Total power12.17kw
Overall dimensions5895x 1100 x 1600mm
Feed speed8-25m/min
The thickness of the sheet meta10-60mm
Sealing tape thickness0.4-3mm
Sheet metal width≥50mm
Work pressure6MPa
Weight2360kg
