MFZ450D

Automatic Edge Banding Machine

jiantou

Saving you time is our motivation

Our products include panel saw, boring machine, edge banding machine, automatic panel saw, CNC processing center, carving machine series and so forth, which are exported to more than 60 countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia. lt has established complete sales system(more than 150 dealers). Over 20 years of experience in competitions in domestic and overseas markets, our brand Unisunx has become one of global well-know brand, which offers trustworthy machinery for global customers.

unisunx

Unisunx group company owns 70000 square meters of production scale.
Besides,it has abundant technique strength, full range of testing method and four professional production lines of woodworking machinery.So it can manufacture thousands sets in one month. Our factories locate at Jiaozhou Bay.

The most important highlights at a glance

113
3

Feed guide

4

Pre-milling

MFZ450D Automatic Edge Banding Machine

Details

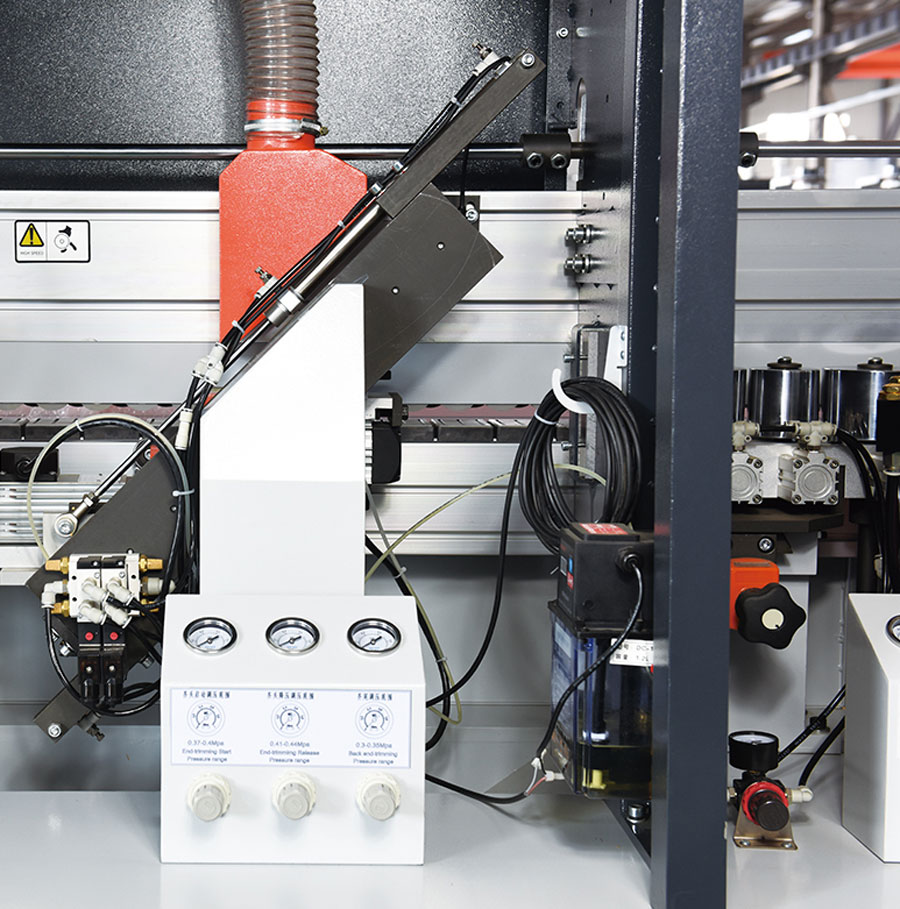

Precision linear guide structure, can cut the end of the minimum 4cm plate. Two 0.37kw motors, frequency 200hz, speed: 12000rpm. Equipped with motor manual rotation device for Angle adjustment for cutting out excess front and rear end film. Automatic tracking by mold and high frequency electrode fast cutting mechanism to ensure smooth cutting surface.

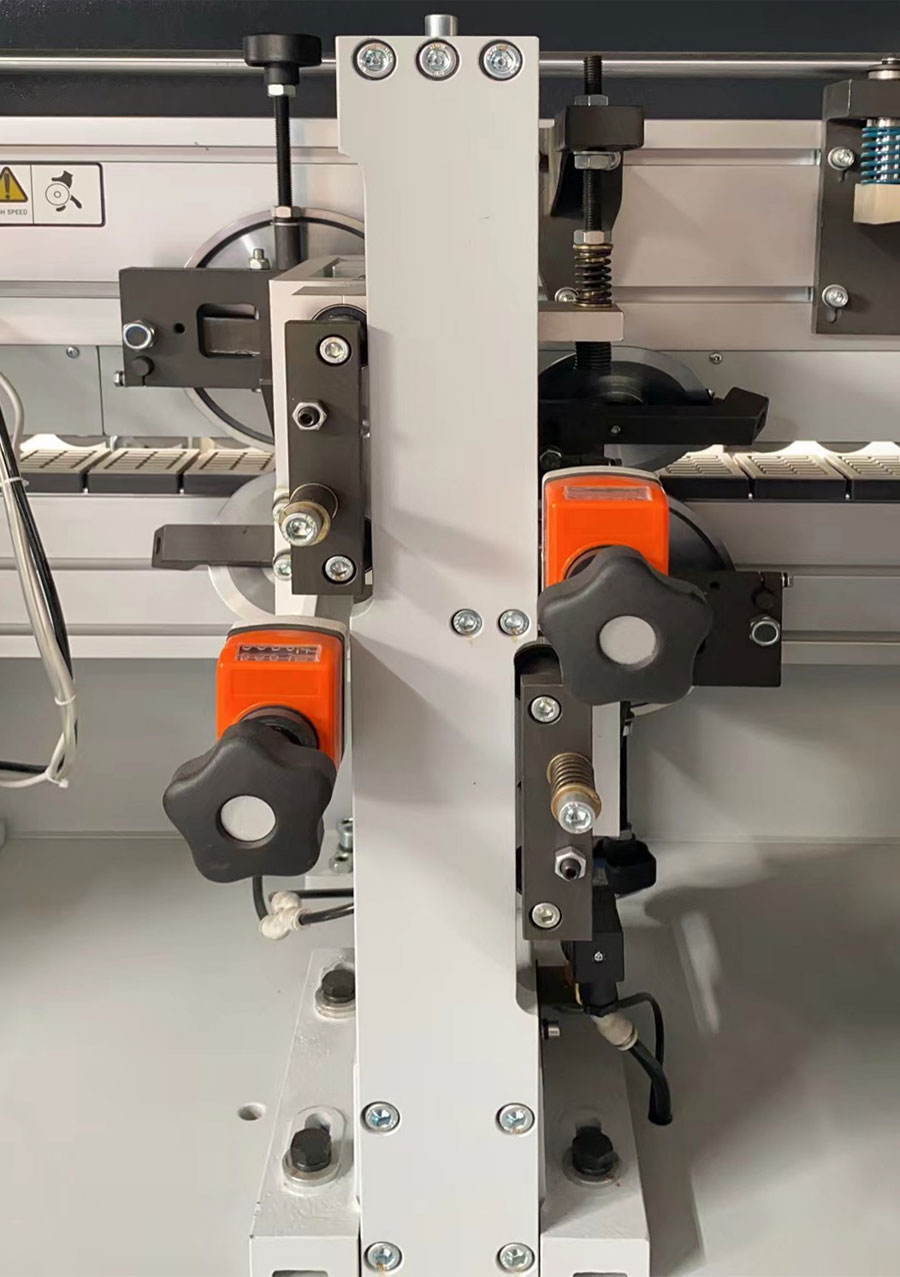

According to the thickness of the edge tape automatic switch, used to repair processing plate edge sealing strip up and down the excess part of the edge sealing material, to ensure that the upper and lower parts of the trimming plate smooth.
The scraping mechanism used for removing the tool marks left by trimming and cutting process, to ensure the trimming plates smoothly.

The buffing device is to clean the processed sheet with a cotton polishing wheel, and make the end face of the edge more smooth by polishing.
Input voltage 3~380v, 50hz. With motor braking function of independent inverter control, phase sequence protection device. All equipment and electrical appliances meet the relevant national standards, standard with Delta converter, standard with a line of international brand low-voltage electrical appliances.

Technology Data

Total power 14.04kw
Overall dimensions 5660 x 1100 x 1600mm
Feed speed 8-25m/min
The thickness of the sheet meta 10-60mm
Sealing tape thickness 0.4-3mm
Sheet metal width ≥50mm
Work pressure 6MPa
Weight 2200kg
