MFZ680A2FT

Automatic Edge Banding Machine

Pre-milling, Pre-heating, ,Double gluing, End trimming, Pneumatic fine trimming, Profiling, double pneumatic scarping, Cutting edge, Flat scraping, Cleaning, Double motorizing buffing.
get free quote

MFZ680A2FT Automatic Edge Banding Machine

jiantou

LIVE- DEMO

Contact

Callback service

Saving you time is our motivation

Our products include panel saw, boring machine, edge banding machine, automatic panel saw, CNC processing center, carving machine series and so forth, which are exported to more than 60 countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia. lt has established complete sales system(more than 150 dealers). Over 20 years of experience in competitions in domestic and overseas markets, our brand Unisunx has become one of global well-know brand, which offers trustworthy machinery for global customers.

unisunx

Unisunx group company owns 70000 square meters of production scale.
Besides,it has abundant technique strength, full range of testing method and four professional production lines of woodworking machinery.So it can manufacture thousands sets in one month. Our factories locate at Jiaozhou Bay.

The most important highlights at a glance

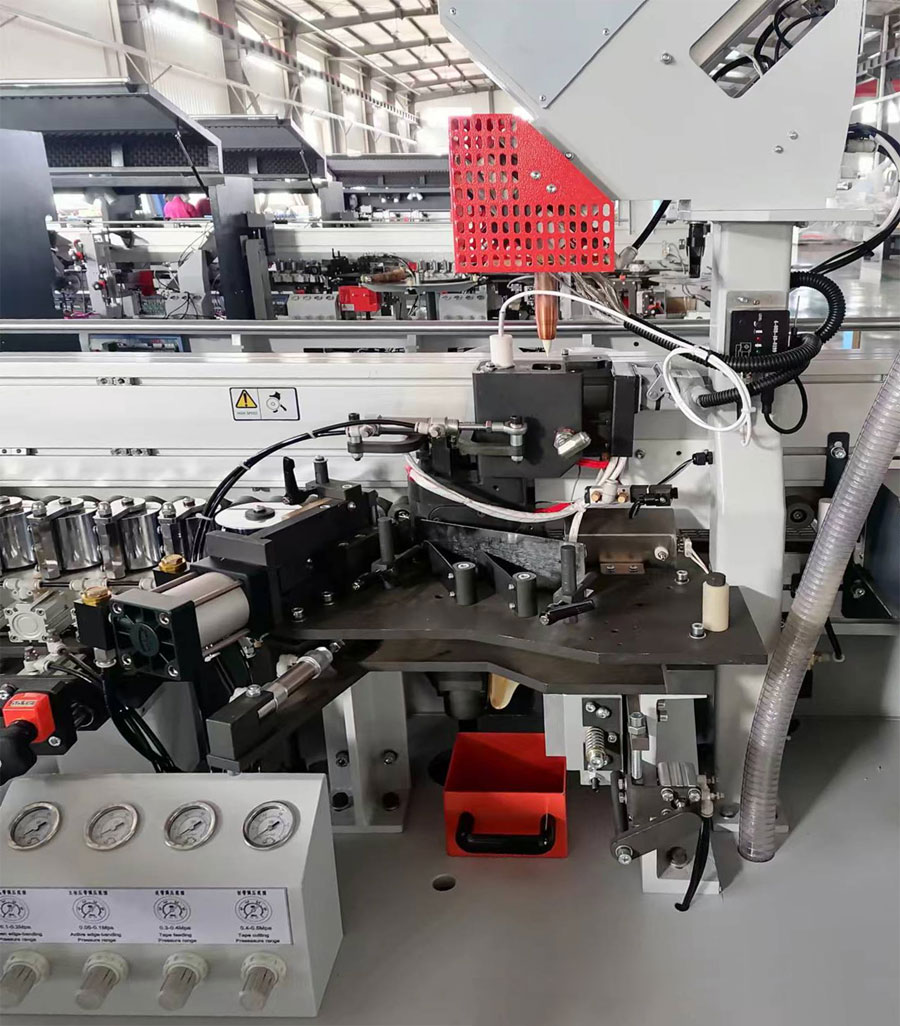

Narrow side feeding device

This device can improve the efficiency and accuracy of edge sealing for narrow edge. Flexible disassembly, easy to use.
2

Narrow side feeding device

Feed guide

Adopt guideway guide, higher precision, convenient adjustment, digital display, relative dovetail structure more stable.

3

Feed guide

Premilling system

Two motors for finishing the edge of the workpiece before gluing. The feeding guide plate adjusts the size of pre-milling amount, standard equipped with German brand diamond pre-milling cutter, independent dust cover, the plate workpiece is corrected before pressing film. The corrugations caused by the double milling cutter on the cutting plate after the sawing process, in order to achieve better edge sealing effect, the milling cutter motor will be completed through the pressure cylinder.
4

Premilling system

MFZ680A2FT Automatic Edge Banding Machine

  • Min. 40mm for end cutting & corner rounding.
  • End trimming with double guide rail. profiling unit with four knives, Length 11.3m
  • Heavy duty roller edge banding machine, length up to 10 meters and weighing nearly 5 tons.
  • Gluing system–Double glue pots, convenient for various customized edged colors.
  • Universal for high-end whole-house customization and door panels.

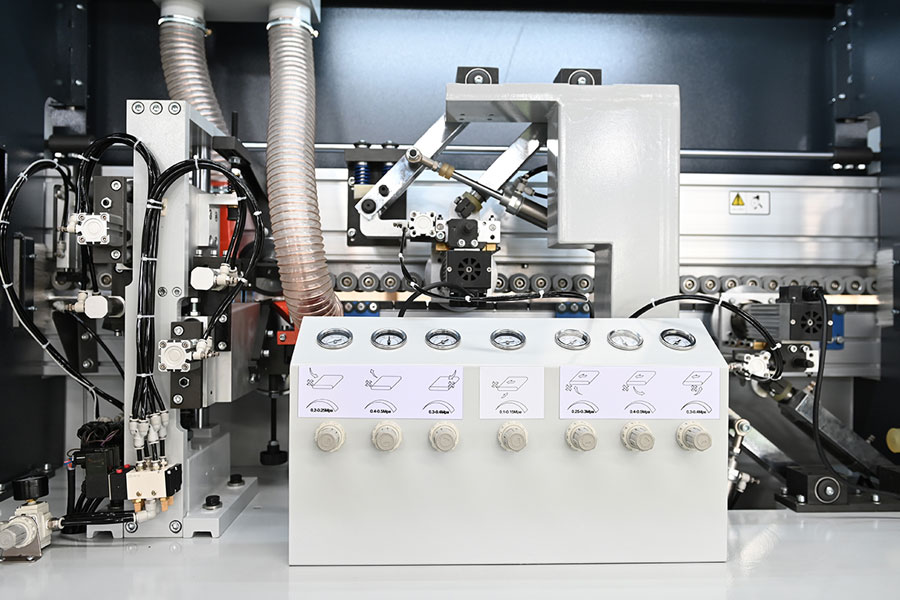

  • Full-featured and powerful, pneumatic adjustment, flexible edge banding.

Details

When there is a lack of rubber granules in the rubber box, the rubber granules can be automatically sucked into the rubber box. Reduce manual operation to avoid unnecessary waste and high temperature risk caused by manual operation.

Precision linear guide structure, can cut the end of the minimum 4cm plate. Two 0.37kw motors, frequency 200hz, speed: 12000rpm. Equipped with motor manual rotation device for Angle adjustment for cutting out excess front and rear end film. Automatic tracking by mold and high frequency electrode fast cutting mechanism to ensure smooth cutting surface.
According to the thickness of the edge tape automatic switch, used to repair processing plate edge sealing strip up and down the excess part of the edge sealing material, to ensure that the upper and lower parts of the trimming plate smooth.
UNISUNX patented technology, high precision copying to ensure the finished product effect; Can repair both sides of the fillet, double motors to repair the Angle copying, each motor power 0.3kw, frequency 200hz, speed 12000rpm; Planar connecting rod mechanism, two copy milling cutter, make the end face of the plate more smooth and beautiful; Can also track the repair edge, according to the needs of the repair of different shapes of the edge.
Remove the pre-cut PVC film on the milling marks, eliminate the edge of the non-linear motion of the cutting process caused by the ripple marks, pneumatic control, automatic regulation.
Automatic wire breaking after scraping, avoid filamentous PVC winding, affect the edge sealing effect, improve the cleaning of the sheet after edge sealing, pneumatic control.
Remove residual glue, make the surface of the plate more beautiful. Further optimize the trimming effect, according to the plate thickness automatic adjustment.
Remove separation agent and residual glue to ensure clean surface.
Electric drive polishing swing, the effect is more stable and efficient. Two groups of polishing effect is better, can be competent for different colors of polishing work.
Input voltage 3~380v, 50hz. With motor braking function of independent inverter control, phase sequence protection device. All equipment and electrical appliances meet the relevant national standards, standard with Delta converter, standard with a line of international brand low-voltage electrical appliances.






Technology Data

Total power 30.5kw
Overall dimensions 11300 x 2120 x 2000mm
Feed speed 15-20m/min
The thickness of the sheet meta 10-60mm
Sealing tape thickness 0.4-3mm
Sheet metal width ≥40mm
Work pressure 7MPa
Weight 4610kg
