MFZ680A2S

Two-Color No-Wash PUR Edge Banding Machine

Two-Color No-Wash PUR Edge Banding Machine

MFZ680A2S Two-Color No-Wash PUR Banding Machine

The appearance may be updated at any time. There may be a delay in website updates. The latest design is the final version.

jiantou
Pre-milling, Pre-heating, ,Double gluing, End trimming, Pneumatic fine trimming, Profiling, double pneumatic scarping, Cutting edge, Flat scraping, Cleaning, Double motorizing buffing
get free quote

UNISUNX You Can Rely on

Our products include: Panel saw (including Z and Y series), edge banding machine, reciprocating saw series, over-edging machine, CNC processing center, carving machine series and so forth, which are exported to more than 50 countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, Australia. It has established complete sales system (more than 120 dealers). Over yeas of experience in competitions in domestic and overseas markets, our brand has become one of global well-know brand, which offers trustworthy machinery for global customers.

Details That Make the Difference

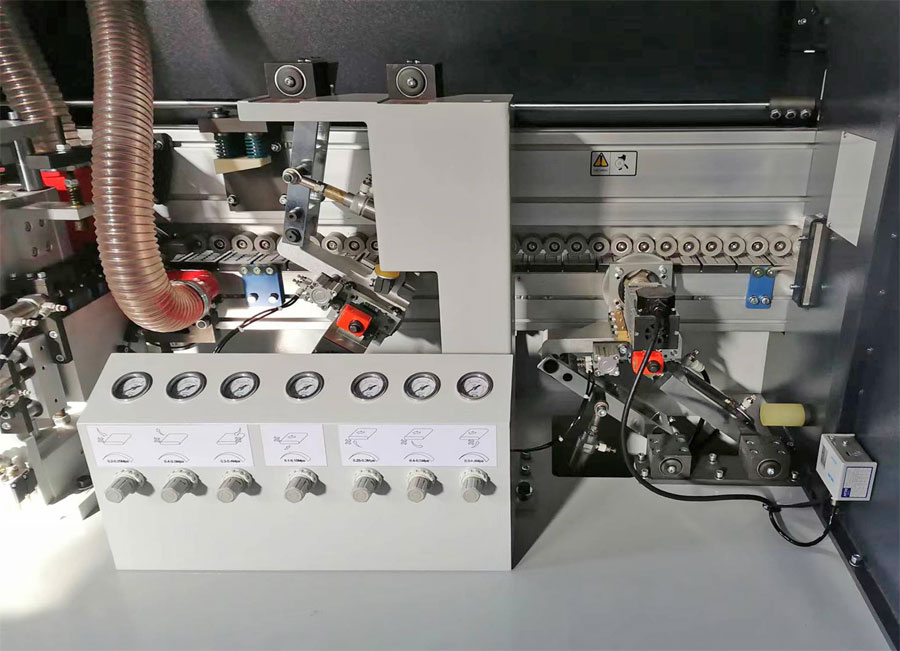

Narrow side feeding device

2

Narrow side feeding device

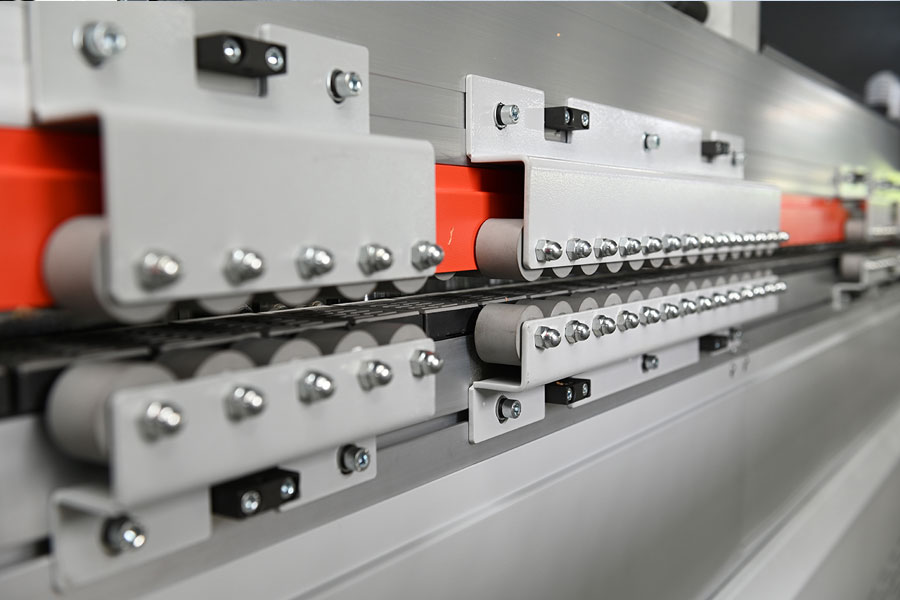

Feed guide

3

Feed guide

Premilling system

4

Premilling system

MFZ680A2S Two-Color No-Wash PUR Edge Banding Machine

Two-Color No-Wash PUR Edge Banding Machine
  • Min. 40mm for end cutting & corner rounding.
  • Heavy duty roller edge banding machine, length up to 10 meters and weighing nearly 5 tons.
  • Gluing system–Double glue pots, convenient for various customized edged colors.
  • Universal for high-end whole-house customization and door panels.
  • Full-featured and powerful, pneumatic adjustment, flexible edge banding.

Details

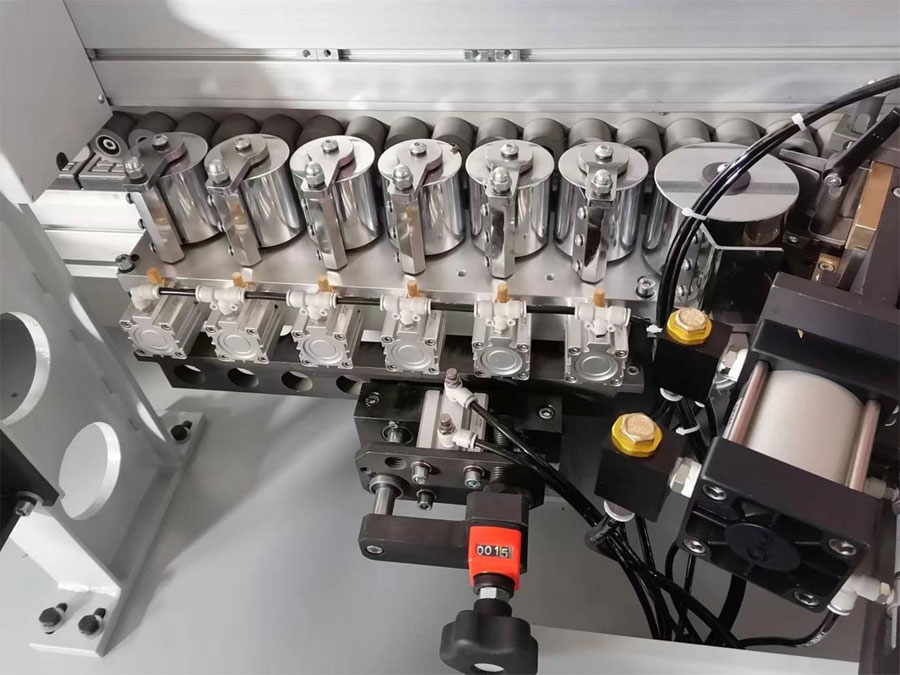

No.1 rubber pot for two-color no-cleaning PUR rubber pot, standard with 7 press wheel pressing device, easy to achieve a variety of colors PUR edge switching. The second glue pot is standard with the glue pot, or optionally, the glue pot is equipped with a quick pre-melting device, five rounds of pressure paste, and the standard scraping film.

Can cut the end of the minimum 4cm plate. Two 0.37kw motors, frequency 200hz, speed: 12000rpm. Equipped with motor manual rotation device for Angle adjustment for cutting out excess front and rear end film. Automatic tracking by mold and high frequency electrode fast cutting mechanism to ensure smooth cutting surface.

According to the thickness of the edge tape automatic switch, used to repair processing plate edge sealing strip up and down the excess part of the edge sealing material, to ensure that the upper and lower parts of the trimming plate smooth.

UNISUNX patented technology, high precision copying to ensure the finished product effect; Can repair both sides of the fillet, double motors to repair the Angle copying, each motor power 0.3kw, frequency 200hz, speed 12000rpm; Planar connecting rod mechanism, two copy milling cutter, make the end face of the plate more smooth and beautiful; Can also track the repair edge, according to the needs of the repair of different shapes of the edge.

Remove the pre-cut PVC film on the milling marks, eliminate the edge of the non-linear motion of the cutting process caused by the ripple marks, pneumatic control, automatic regulation.
Automatic wire breaking after scraping, avoid filamentous PVC winding, affect the edge sealing effect, improve the cleaning of the sheet after edge sealing, pneumatic control.
Remove residual glue, make the surface of the plate more beautiful. Further optimize the trimming effect, according to the plate thickness automatic adjustment.
Remove separation agent and residual glue to ensure clean surface.
Electric drive polishing swing, the effect is more stable and efficient. Two groups of polishing effect is better, can be competent for different colors of polishing work.
Input voltage 3~380v, 50hz. With motor braking function of independent inverter control, phase sequence protection device. All equipment and electrical appliances meet the relevant national standards, standard with Delta converter, standard with a line of international brand low-voltage electrical appliances.


Technology Data

Total power 26.7kw
Overall dimensions 10000x 1900x 2000mm
Feed speed 8-25m/min
The thickness of the sheet meta 10-60mm
Sealing tape thickness 0.4-3mm
Sheet metal width ≥40mm
Work pressure 7MPa
Weight 4010kg
