MJ6132TYB Panel saw
Manual up/down for main saw and scoring saw
MJ6132TYB Panel saw
Manual up/down for main saw and scoring saw , Manual tilting 45 degree, Type E protection hood, LEUCO saw blade, Thinner sliding table, Pressure board
Saving you time is our motivation
Time, the most important resource in a modern workshop was one of the main focuses whilst developing the new tempora machine concept. Processing edges needs to be as quick, easy and efficient as possible. To achieve this, the tempora model combines the key characteristics of speed, productivity, flexibility and user comfort in a convincing complete package. The final finishing results when processing both coiled and strip material convince with incredibly high standards, that fulfil the ever increasing demands of edgebanding complete processing.
unisunx
Unisunx group company owns 70000 square meters of production scale.
Besides,it has abundant technique strength, full range of testing method and four professional production lines of woodworking machinery.So it can manufacture thousands sets in one month. Our factories locate at Jiaozhou Bay.
The most important highlights at a glance

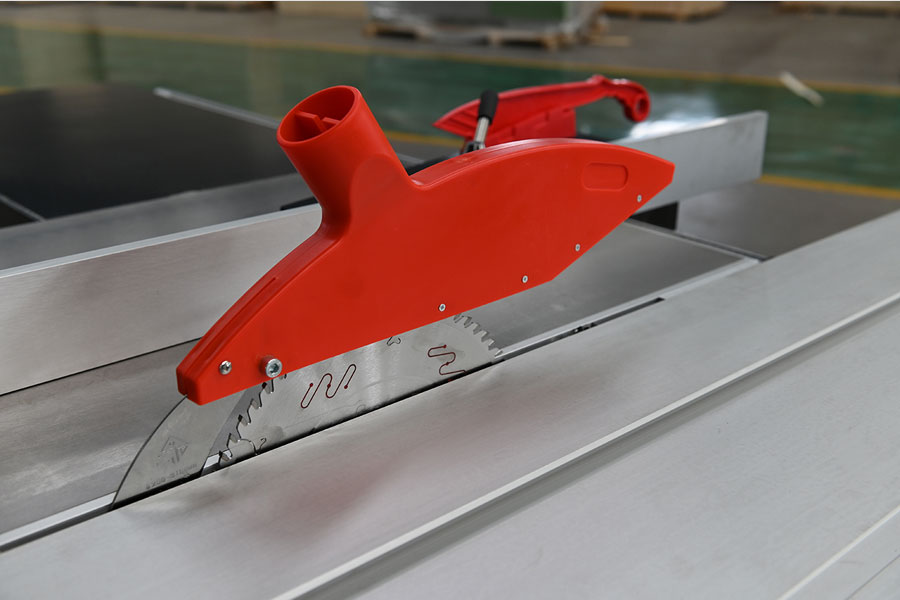

Type E protection hood
Type E protection hood
Serval motor rip fence
Serval motor rip fence

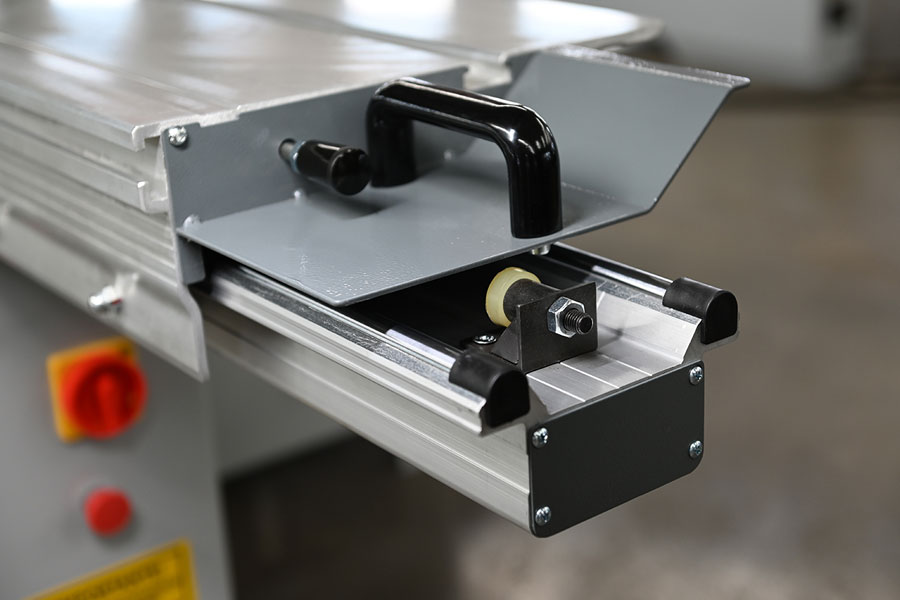

Material blocking plate
Material blocking plate
MJ6132TYB Panel saw
- Manual up/down for main saw and scoring saw
- Manual tilting 45 degree
- Type E protection hood

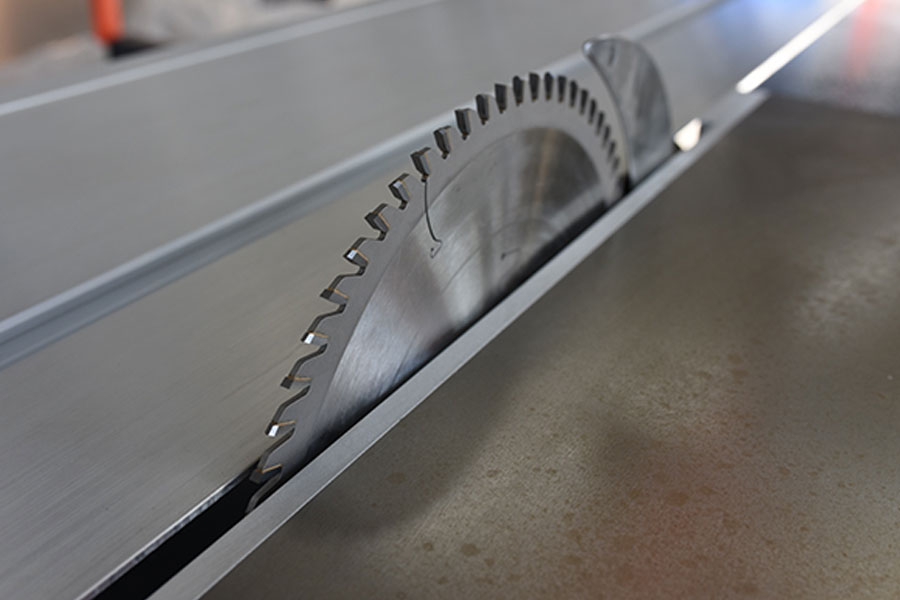

- LEUCO saw blade
- Thinner sliding table
- Pressure board
Details
Technology Data
guide shaft spindle | 40mm |
max saw blade | 315mm |
dimension of slidng table | 3200×370mm |
gross cut capacity | 3200mm |
width of cut between saw blade and rip fence | 1250mm |
height of cut of ∮300mm | 80mm |
height of cut with saw blade ∮300mm at 45゜ | 55mm |
saw blade diameter | 300mm (∮250-∮315mm) |
scoring saw blade diameter | 120mm |
main spindle diameter | ∮30mm |
scoring spindle diameter | ∮20mm |
speed of main saw spindle | 3000/4000/5000r/min |
speed of scoring saw blade | 8000r/min |
main motor | 5.5kw |
soring saw moor | 0.75kw |
Net weight | 580kgs |
gross weight | 690kgs |
overall size | 3300*3360*840mm |
